|Place of Origin:
Payment & Shipping Terms:
|Minimum Order Quantity:
|nude or wooden
|T/T, Western Union, MoneyGram
|Road Marking Paint
|Main Raw Material:

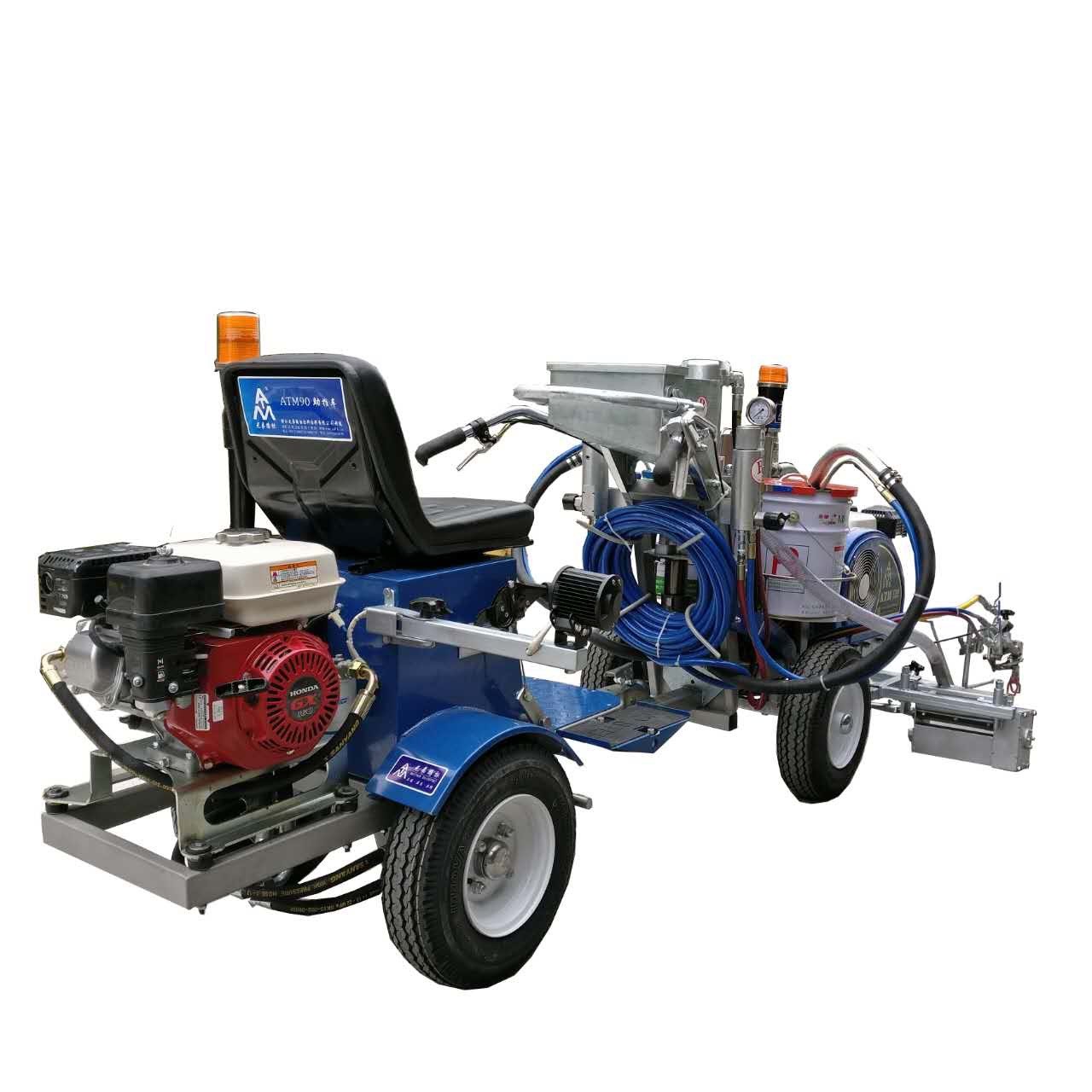

Liquid Coating Road Marking Paint Machine,
Double Pump Road Marking Paint Machine,
Traffic Acrylic Spray Paint Machine
The two-component internal mixing machine adopts the principle of double pump internal mixing, which has compact structure and simple operation. Equipped with centrifugal micro-bead glass dispenser, alarm lights and lighting, make the night row more safe and convenient!
1One pump two cylinder: one pump two cylinder unique design makes the double cylinder work up and down synchronously, ensures the material quantity of two components to be fully consistent! Realized the pressure more stable, the line more full of good wishes!
2Single gun spray: solved the double gun outside the mixed edge of the "double skin" problem! And by changing the gun mouth, so that the zebra crossing one shot molding!
3 pen tube mixer: add pen tube mixer in front of the gun to ensure that the paint mixing of the two components is more uniform, more thorough, so that the advantages of double component marking line is fully reflected!
4 Centrifugal dispenser: The non-fluency of the line caused by the shaking of the bead tank and the vibration of the air pump is eliminated. And microbeads easily damp caused by plugging perforation defects!
5Independent cleaning system: equipped with independent cleaning system to make cleaning more convenient, faster and more effective!
|Application:Marking Two Component Spray Paint Line
|Dimension(L*W*H):1700*900*1000mm + 1600*800*1100mm
|Spray Method:Airless & High Pressure
|Paint/Glass Bead Tank Capacity:50kg/10kg
|Max Marking Volume:12L/min
|mixed way : outside mixed
|Spread System:Pneumatic Type
|Angle of Uphill:0-45
|Move Forward Speed:0-16km/h
|Move Back Speed:0-10km/h
|Features: 1.Adpot Internal-mixing Double Pump
2.High Pressure Filter makes washing more Conveniently
3.Long Validity and Easy to Operate and Maintain
4.Equipped With 2Durable Spray Gun
