Product Details
Place of Origin: China
Brand Name: HUAQUN
Certification: ISO 9001 , MSDS
Model Number: HQ
Payment & Shipping Terms
Minimum Order Quantity: 1 bag
Price: Negotiable
Packaging Details: 25kg per bag, 60 bags per pallets /jumbo bag
Delivery Time: 2-5 working days
Payment Terms: L/C, T/T
Supply Ability: 50 ton per day
Material: |
C5 Resin |
Color: |
White , Yellow , Blue ,Green ,Red |
Application Temperature: |
180~220℃ |
Package: |
25kg/ Bag |
Theoretical Spreading Rate: |
1000kg/200 Square Meters |
Film Appearance3mins: |
No Wrinkle, Spot, Blister, Crack, Off, Glued Tyres, The Color Of Fill Appearance Should Be Closed To Standard |
Alkali Resistance: |
There's No Abnormal Phenomena 24 Hours After Being Soaked In The Saturated Calcium Chloride Solution |
Thermal Stability: |
Keep 4h In Between 200℃ To 220℃ When Stiring ,there's No Obvious Phenomenon Of Yellowing, Coking, Caking Etc. |
Material: |
C5 Resin |
Color: |
White , Yellow , Blue ,Green ,Red |
Application Temperature: |
180~220℃ |
Package: |
25kg/ Bag |
Theoretical Spreading Rate: |
1000kg/200 Square Meters |
Film Appearance3mins: |
No Wrinkle, Spot, Blister, Crack, Off, Glued Tyres, The Color Of Fill Appearance Should Be Closed To Standard |
Alkali Resistance: |
There's No Abnormal Phenomena 24 Hours After Being Soaked In The Saturated Calcium Chloride Solution |
Thermal Stability: |
Keep 4h In Between 200℃ To 220℃ When Stiring ,there's No Obvious Phenomenon Of Yellowing, Coking, Caking Etc. |

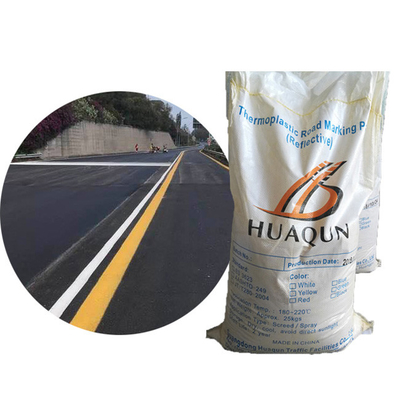

High Adhesive White And Yellow Thermoplastic Road Marking Paint With Glass Beads Traffic Line Marking
| BS3262 STD. THERMOPLASTIC ROAD MARKING PAINT SPECIFICATION |
| Components | Specification |
| Resin | ≥15% |
| Titanium Dioxide | ≥3% |
| Glass Beads | ≥20% |
| Polyethylene wax | ≥1.2% |
| Calcium carbonate powder | ≥45% |
| Quartz sand-- silicon dioxide | ≥15% |
Thermoplastic marking is widely used in highway and street constrcution. White and yellow are the most common color used in thermoplastic marking projects. HUA QUN is leading thermoplastic road marking paint manufacturer in China. Both white and yellow thermoplastic road marking paints are renowned for strict quality control and competitive price. Paint in different standards and color are also available to meet the different construction needs.
Thermoplastic Road Marking Paint is a kind of road marking material, uses thermoplasticity petroleum resin as binder and qualified pigment filler and additive.Thermoplastic road marking material is with advantages of fast dry, easy execute, high reflection, and long service life.
Main Materials:
1.Titanium dioxide : Good whiteness, high purity, small particle size, low oil absorption.
2.C5 resin: Outstanding affinity for pigments , good compatibility with EVA , good heat stability.
3.PE wax: Heat resistance , abrasion resistance, as a lubricant, increase paint processing performance.
4.Calcium carbonate: High precise classification, high whiteness.
5.Glass beads: Drop on glass beads , intermix glass bead , we use top brand beads brand , high reflective.
| Physical Characteristics | Standard | Result | |||||
| Appearance Color | White/Yellow | White/ Yellow | |||||
| Density (g/cm 3 ) | 1.8 ~ 2.3 | 2.2/2.2 | |||||
| Softening Point ( ℃) | Min.65 | 69/68 | |||||
|
Drying time of no sticking to wheel (minute) |
3 max. | 2.8 | |||||
| Luminance factor | Min.80/Min.50 | 85/50 | |||||
| Compression Strength(Mpa) | 12 min. | 21/21 | |||||
| Skid Resistance (BPN) | 45 min. | 50/50 | |||||
| Flow Resistance (%) | Max.25 | 18, after heating 28/18, after heating 28 | |||||
| Glass Beads Content (%w/w) | 20~30 | 20/20 | |||||
|
Abrasion Resistance (mg 200r/1000g reduce weight): |
80 max. | 60/60 | |||||
Features
Strong adhesion strength : Resin content is reasonable , and it was added special rubber elastomer in the primer in the primer , so it has strong adhesion strength, if the construction technique is reasonable, no peeling off.
Good cracking resistance : Thermoplastic Paint marking is cracking resistance than normal paint.
Bright color : The paint adopts the color of the highest level with reasonable proportion, so it has good weather resistance and will not change color if long term exposure.
High usage ratio : The major feature of paint is low density , big volume and high usage ratio.
Good dirt resistance : The dosage and quality of PE wax are the key point of impacting the dirt resistance.
