Customized Thermoplastic Road Marking Paint Good Reflecitve Fast Drying Wear Resistance

Customized Thermoplastic Road Marking Paint Good Reflecitve Fast Drying Wear Resistance

MOQ: 1 ton
Price: Negotiable
Standard Packaging: 25kgs/bag
Delivery Period: 3-7 work days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 50 tons per day
Detail Information
Place of Origin
China
Brand Name
HUA QUN
Certification
ISO 9001
Model Number
HQ007
Product Name:
Hot Melt Paint
Main Components:
Petroleum Resin, Calcium Carbonate, Glass Beads
Color:
Yellow And White Or Customized
Appearance:
Powder Coating
Application:
Road Marking
Shelf Life:
12 Mouths
Advantage:
Anti-slip And Fast Drying
Package:
25 Kg Per Bag
Product Description

China Standard Thermoplastic Road Marking Paint with Glass Beads Good Reflecitve Fast Drying



Description

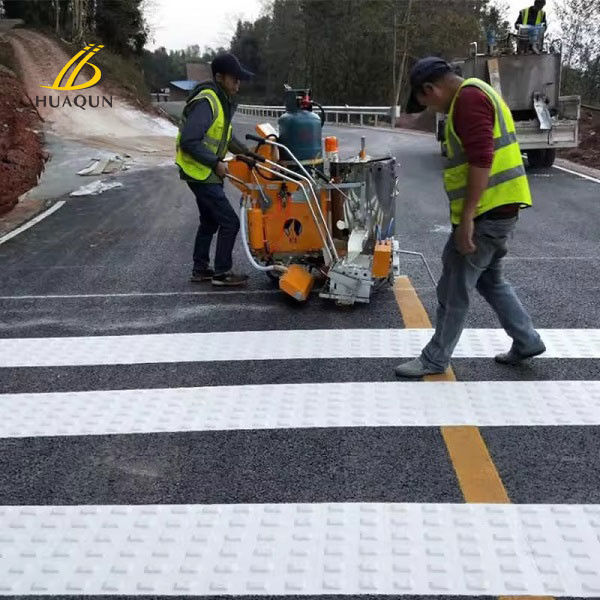

Hot melt marking paint is solid powder at room temperature. During construction, the paint is put into the melting kettle, and the temperature in the kettle is controlled between 180 ° C and 210 ° C. While melting, it is stirred, and after melting, it is put into the insulation melting hopper of the marking car. Melt coating then back into the marking bucket, and heat preservation to keep the material molten state. Before the line is marked by the pre-marking machine position, according to the design drawing indicated on the coating position with the lower coating machine primer. The marking coating can be applied only after the coating agent dries thoroughly. When the scribing begins, the scribing bucket should be placed on the road, because there is a certain gap between the scribing bucket and the ground, when the scribing car ahead, by automatic flow and scrape out a neat line. The glass bead spreader can automatically and evenly spread a layer of reflective glass beads on the marking line.



Technical Specification



Density(g/cm3)

1.8-2.3
Softening point (℃) 90-125
Compressive Strength(MPa) ≥12
Glass bead content(%) 0-30%
Liquidity 35±10
Packing 25kg/bag
Color White/Yellow/Blue/Red/Green/Customized
Executive standard JT/T280-2004/AASHTO/BS3262/Customized
Appearance Powder
Construction temperature 180℃-220℃
Whiteness 70-85(Customized)
Inverse coefficient 50-550
Warranty 12 months
Storage Method Avoid light and moisture
Packing Size 45×70×5CM





Main Components and Features



1. Titanium dioxide: Good whiteness, high purity, small particle size, low oil absorption

2. C5 resin: Outstanding affinity for pigments, good compatibility with EVA, good heat stability

3. PE wax: Heat resistance, abrasion resistance, as a lubricant, increase paint processing performance.

4. Calcium carbonate: High precise classification, high whiteness

5. Glass beads: Drop on glass beads, intermix glass bead, we use top brand beads brand, high reflective.





Formula Customized



                                                 Customized Formula
Customized Formula Content(Customized range) Characteristics
C5 Resin 10%-22% Fluidity Toughness Hardness Adhesion
Titanium Dioxide 0.5-10% 0.5%-30%
Premixed glass beads 0%-30% Reflective after surface wear
Calcium Carbonate Sand 30%-80% Whiteness Wear-resistant Hardness
PE Wax 1%-1.5% Cold and heat resistant
EVA 0.5%-1% Crack resistance
Plasticizer 1%-1.5% Toughness



Different Standards



  AASHTO Standard
Components Specification Test Result
Resin ≥ 20% 22%
Titanium Dioxide ≥ 10% 10.2%
Glass Beads ≥ 30% 32%



  British Standard
Components Specification  Test Result
Resin ≥ 20%  21%
Titanium Dioxide ≥ 10%  12%
Glass Beads ≥ 20%   21%



   China Standard
Components  Specification   Test Result
Resin   ≥ 15%   16.1%
Titanium Dioxide   ≥ 5%    8%
Glass Beads   ≥ 20%    22%





Customized Thermoplastic Road Marking Paint Good Reflecitve Fast Drying Wear Resistance 0




Customized Thermoplastic Road Marking Paint Good Reflecitve Fast Drying Wear Resistance 1

Customized Thermoplastic Road Marking Paint Good Reflecitve Fast Drying Wear Resistance 2
