Product Details
Place of Origin: CHINA
Brand Name: HUA QUN
Certification: ISO
Model Number: CKQ3000
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Pending
Packaging Details: Packed by wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 5 set per day
Name: |
Cold Paint Road Marking Machine |
Power: |
5.5HP Honda Gasoline Engine |
Plunger Pump: |
Automatic Reciprocating Reversing |
Working Mode: |
Hydraulic Drive |
Working Pressure: |
8-25Mpa |
Spraying Flow: |
13L/min |
Spray Width: |
100-450 Mm (double Guns) |
Spraying Thickness: |
0.2-0.4mm |
Volume: |
1600*800*1200mm |
Name: |
Cold Paint Road Marking Machine |
Power: |
5.5HP Honda Gasoline Engine |
Plunger Pump: |
Automatic Reciprocating Reversing |
Working Mode: |
Hydraulic Drive |
Working Pressure: |
8-25Mpa |
Spraying Flow: |
13L/min |
Spray Width: |
100-450 Mm (double Guns) |
Spraying Thickness: |
0.2-0.4mm |
Volume: |
1600*800*1200mm |

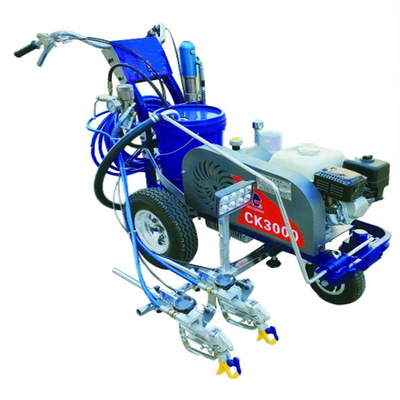

CKQ3000 High-Pressure Airless Jet Cold Paint Road Marking Machine
Product Introduction :
CKQ3000 high-pressure airless cold spray marking machine is a high-pressure flow airlessspray machine, which uses a gasoline engine to drive a single plunger pump to make thepaint form a high-pressure spray inside the machine. The spray gun frame guide rod of themachine is desianed to be lifted and lowered, which can adjust the spray speed and spraywidth accurately and conveniently, with stable performance and excellent quality. Themarked lines are uniform in thickness and neat in edges and corners, with low labor intensity and fast and convenient construction.
| Power | 5.5HP Honda gasoline engine |
| Plunger pump | automatic reciprocating reversing |
| Working mode | hydraulic drive |
| Working pressure | 8-25Mpa |
| Spraying flow | 13L/min |
| Spray width | 100-450 mm (double guns) |
| Spraying thickness | 0.2-0.4mm |
| Volume | 1600*800*1200mm |
| Net weight | 120kg |
Features :
1. It can be used for ordinary airless spraying, which is used for spraying marks or signs.
2. The spray gun can be freely disassembled, different nozzles can be replaced, and the width range of the scribing can be controlled to meet different application requirements.
3. The crossing effect is good and clear, smooth, uniform, and the work efficiency is high, saving work time.
4. The spray gun has a baffle plate on both sides, which can avoid the problem of wide edge hair.
5. The hand-pushed cold spray marking machine has the characteristics of free steering, flexibility, and reliable orientation.
