High Accuracy Digital Road Marking Thickness Gauge 1 Year Warranty
  • name
  • name
  • name
  • name
  • name

High Accuracy Digital Road Marking Thickness Gauge 1 Year Warranty

MOQ: 1 set
Price: Pending
Standard Packaging: 1pc/ aluminum case
Delivery Period: 7days
Payment Method: Western Union, L/C, T/T
Supply Capacity: 3000 pcs per month
Details Information
Product Description
Detail Information
Place of Origin
China
Brand Name
HUA QUN
Certification
ISO9001/ CE / ROSH
Model Number
AT-CT002
Product Name:
Road Marking Thickness Gauge
Material:
Anodized Aluminum Alloy
Measuring Range:
-12.7mm ~ +12.7mm
Resolution:
0.01mm
Indicating Accuracy:
0.02mm
Measurement Area:
50×80mm Minimum
Warranty Period:
1 Year
Weight:
1.2kg
Highlight:

High Accuracy Road Marking Thickness Gauge

,

Road Marking Thickness Gauge

,

CE Digital Road Marking Thickness Gauge

Product Description

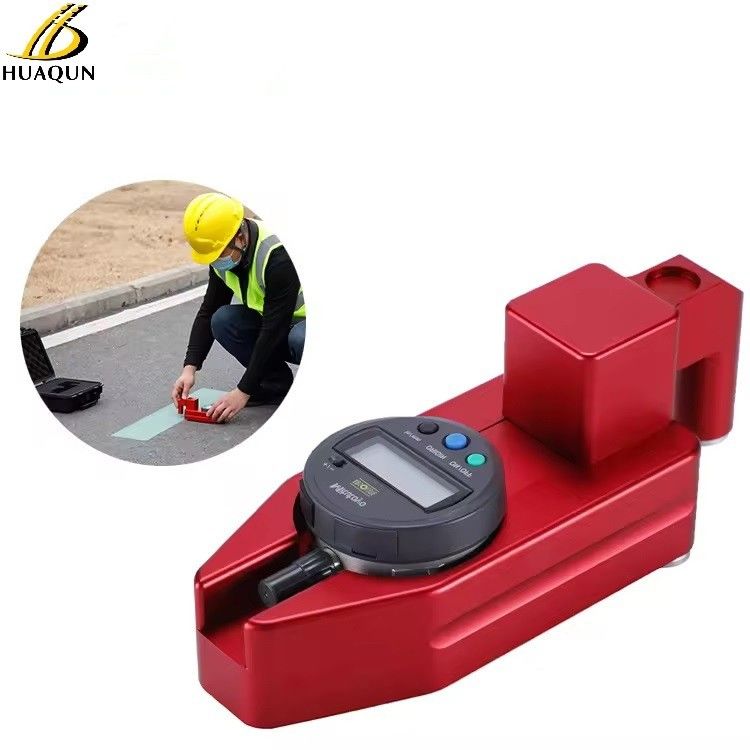

Anodized Aluminum Alloy Body High Accuracy Digital Pavement Marking Thickness Gauge



High Precision Digital Pavement Marking Thickness Gauge for Road Marking



Product Features:



The marking thickness measuring instrument is specially designed and produced for production, quality supervision, engineering construction and supervision units to measure the marking thickness. The instrument has the characteristics of reasonable structural design, simple operation, wide applicability and high measurement accuracy. It is mainly used as a digital device to measure the pavement marking thickness after it is put into use.

The marking thickness detector meets the relevant measurement requirements of the completed marking thickness in the national standard GB / t16311-2009 road traffic marking quality requirements and testing methods.





Simple Operation Steps:



1. Start up: Press the ON/OFF button to start up.

2. Zero calibration: Put the instrument on the smooth surface, press the measuring head downward until can't down; meanwhile press the zero setting and the screen will be displayed to 0.00. If not displayed to 0.00, the up steps can be tried several times until the screen appears to 0.00MM and the value is adjusted to 0.00MM.

3. Test: The screen appears 0.00MM, which means the zero calibration is succeed. Put the measuring head on the marking line and then press down the measuring head until can't be pressed down; the value displayed on the screen is the thickness of the marking line.





Main Technical Parameters



Measuring range -12.6mm ~ +12.6mm
Material Anodized aluminum alloy
Resolution 0.01mm
Indicating accuracy 0.02mm
Size 180×70×76mm(L×W×H)
Usable temperature range -10℃-50℃
Weight 1.2KG
High-precision dial indicator 35mm
Measurement area 50×80mm minimum
Can measure height/thickness/depth ≤2%
Standard Configuration

Digital thickness gauge 1

Manufacturing certificate 1

Operating instructions 1

Carrying case 1
Case Size 32×29×15cm(L×W×H)
Package gross weight 2.5kg



High Accuracy Digital Road Marking Thickness Gauge 1 Year Warranty 0

High Accuracy Digital Road Marking Thickness Gauge 1 Year Warranty 1











High Accuracy Digital Road Marking Thickness Gauge 1 Year Warranty 2

High Accuracy Digital Road Marking Thickness Gauge 1 Year Warranty 3
