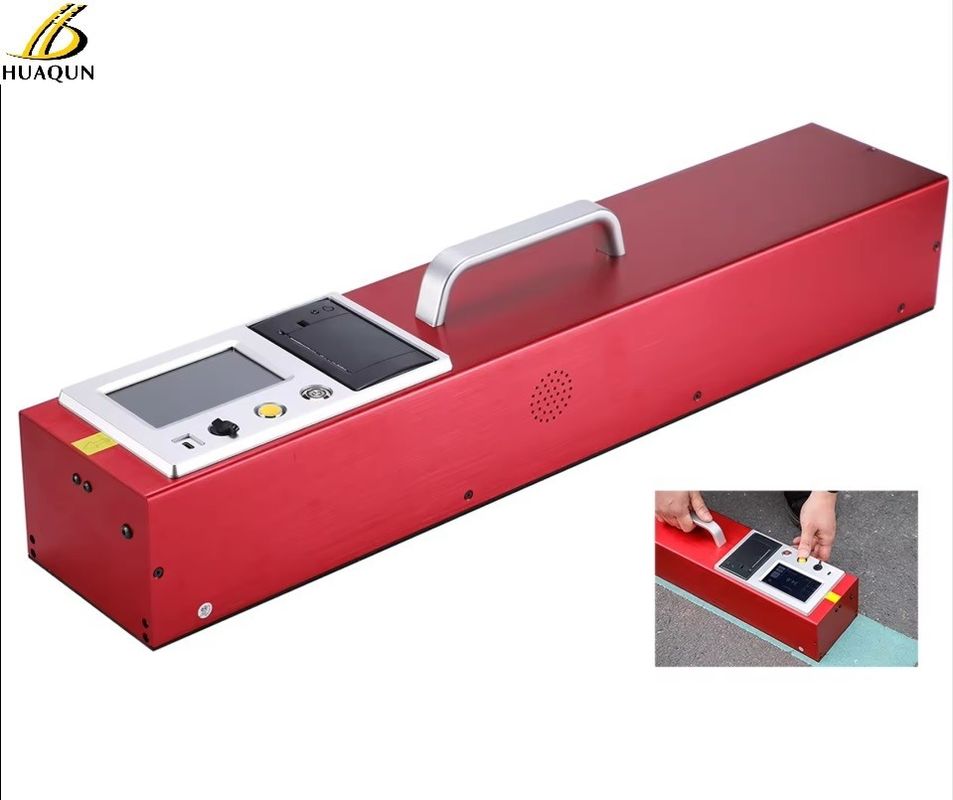

Large Data Storage Pavement Marking Retroreflectometer For Road Markings

Retroreflective Performance Measurement For Road Markings Retroreflectometer With Large Data Storage

Retroreflective Performance Measurement for Road Markings Retroreflectometer with Large Data Storage

Retroreflectometer for road markings is used to measure the brightness coefficient of line retroreflection. The main characteristic of its research is to simulate the brightness of the markings on the road surface when a motor vehicle is driving at night. After being reflected by the headlights, the brightness is observed by the driver in the cab, the measured parameter is the nighttime retroreflection brightness coefficient, which is the rl value. This instrument is easy to operate and has reliable measurement values. It is suitable for both laboratory environments and outdoor on-site measurements. It is a necessary instrument for production, quality supervision, engineering construction, supervision and other units to measure the retroreflecitve performance of road markings.

Main Parameters



Main Features

1. High definition touch screen
2. Imported all aluminum body
3. Real time voice broadcasting of measurement data, on-site printing of detection data
4. Support for vibration marking testing
5. USB data interface, supporting one click Excel data export

Compliant with Specification

◎ EN 1436 (RL & QD)

◎ ASTM E2302 (QD)
◎ ASTM E2367 (RL)
◎ ASTM E1710
◎ ASTM E2177-18
◎ EN 1436


Operation Panels and Basic Operations



Introduction to Use

• On/off button
Turn on/off the instrument.
When starting up, press the button for 10-12 seconds, and the display screen is light. Then there is a “drop” sound, and the instrument is turned on;
When shutting down, press the button and the instrument is turned off.Note: When the instrument is turned off, it can be charged by a standard charger.

• Testing button
Trigger operation when measuring.
Press the button and the instrument begins to test.

• Display screen
Display various states and data information when the instrument is working, and can also perform system settings, measurement calibration, and record transmission for the instrument.

• Printer
Print out the current measurement results with the built-in printer.

• USB interface
Connect the instrument to the computer through USB interface to transmit data.

•Charging plughole
Charge the instrument.
