PRODUCTS DETAILS
Home > Products >
Manufacturing Line Traffic Road Marking Paint 25 Kg Road Sign Paint Coating Reflective Hot Melt Thermoplastic Marking Paint

Manufacturing Line Traffic Road Marking Paint 25 Kg Road Sign Paint Coating Reflective Hot Melt Thermoplastic Marking Paint

MOQ: 1 ton
Price: Pending
Standard Packaging: 25kg per bag,40 bags per ton,25-28 tons per 1x20ft container
Delivery Period: 3-7work days
Payment Method: L/C, T/T, Western Union
Supply Capacity: 100 tons per day
Detail Information
Place of Origin
China
Brand Name
HUA QUN
Certification
ISO9001
Model Number
HQ-129
Package:
25 Kg/ Bag
Cover Rate:
4-5 Kg/㎡
Material:
Petroleum Resin
Country Of Origin:
China
Curing Time:
24 Hours
Einecs No:
N/W
State:
Powder Coating
Appearance:
Powder
Highlight:

Road Sign Paint Thermoplastic Paint

,

Hot Melt Thermoplastic Paint

,

25 kg Thermoplastic Paint

Product Description

Manufacturing Line Traffic road marking paint 25 kg Road sign paint coating reflective hot melt thermoplastic marking paint

                               Product Description



Thermoplastic marking paint are coatings that become soft and flowable when heated and harden again when cooled.

Definition: Thermoplastic paint are a type of coating material that is characterized by its ability to soften and flow under heat and then solidify upon cooling.

Specifications:

- Varying colors available.
- Different thicknesses can be applied depending on the specific requirements.
- Good weather resistance.

Usage:

- Clean the surface to be coated thoroughly.
- Ensure the surface is dry and free from contaminants.
- Apply the thermoplastic coating using appropriate application methods such as spraying or brushing.
- Heat the coating to the required temperature to ensure proper adhesion and curing.



How to Use Thermoplastic Paint?



Thermoplastic road marking paint is mainly used for road markings. Here's a general way to use it:

1. Surface preparation:
- The surface to be painted should be clean, dry, and free of dust, oil, and loose debris. Sweep or use a blower to remove loose particles. If there is grease or other contaminants, clean the surface with an appropriate solvent.
2. Melting the paint:
- Thermoplastic paint needs to be heated to a molten state. This is usually done using a specialized thermoplastic paint melting kettle. The paint is heated to a temperature typically between 180 - 220 degrees Celsius (the exact temperature may vary depending on the product specifications) until it becomes a smooth, fluid consistency.
3. Application:
- The molten paint can be applied using a squeegee or a spray application system. For road markings like lane lines, crosswalks, etc., the squeegee is a common tool. The operator pours the molten paint in front of the squeegee and then drags it along the marked path to create a smooth, even line of the desired width. When using a spray system, make sure the spray nozzle is adjusted to achieve the correct pattern and thickness.
4. Drying and curing:
- After application, the thermoplastic paint cools and solidifies. This process doesn't take long, usually within a few minutes, as the paint hardens to form a durable marking. It's important to keep the area free from traffic or other disturbances during this initial drying and curing period to ensure the markings set properly.

It's crucial to follow the manufacturer's instructions carefully when using thermoplastic paint, as different products may have specific requirements regarding temperature, application methods, and safety precautions.



Manufacturing Line Traffic Road Marking Paint 25 Kg Road Sign Paint Coating Reflective Hot Melt Thermoplastic Marking Paint 0

Manufacturing Line Traffic Road Marking Paint 25 Kg Road Sign Paint Coating Reflective Hot Melt Thermoplastic Marking Paint 1

Manufacturing Line Traffic Road Marking Paint 25 Kg Road Sign Paint Coating Reflective Hot Melt Thermoplastic Marking Paint 2

Manufacturing Line Traffic Road Marking Paint 25 Kg Road Sign Paint Coating Reflective Hot Melt Thermoplastic Marking Paint 3

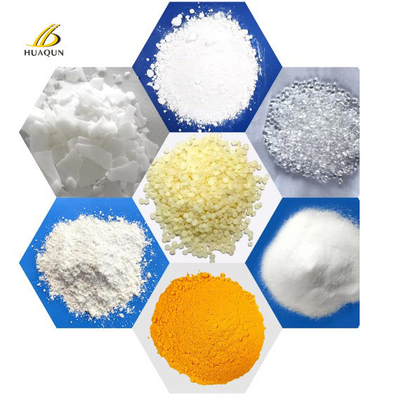

                                                Customized Formula
Customized Formula Content(Customized range) Characteristics
C5 Resin 10%-22% Fluidity Toughness Hardness Adhesion
Titanium Dioxide 0.5-10% 0.5%-30%
Premixed glass beads 0%-30% Reflective after surface wear
Calcium Carbonate Sand 30%-80% Whiteness Wear-resistant Hardness
PE Wax 1%-1.5% Cold and heat resistant
EVA 0.5%-1% Crack resistance
Plasticizer 1%-1.5% Toughness



                    Advantages of Thermoplastic Paint



The advantages of thermoplastic paint are as follows:


Strong adhesion and durability

- It has strong adhesion to the road surface, ensuring that the marking lines remain intact, clear, and not easily peeled off under the long-term influence of vehicle rolling and various environmental factors.
- It has excellent wear resistance and a long service life, reducing the waste of manpower and material resources caused by repeated constructions and the obstruction to normal traffic.

Good visibility

- Reflective glass beads can be mixed during construction, so the marking lines have good reflective performance at night, which can greatly improve the safety and efficiency of driving at night and make it easier for drivers to see the road markings clearly under low-light conditions.
- The color of the paint itself is bright and eye-catching, providing clear guidance for drivers and pedestrians even during the day.

Rapid drying and convenient construction

- It dries quickly and can be opened to traffic shortly after construction, effectively reducing the impact on traffic and improving construction efficiency.
- The construction method is relatively simple. Usually, a special marking device is used to scrape or spray the melted paint on the road surface, which is easy to operate and can form neat and uniform marking lines.

Economy

- Although its initial purchase cost may be relatively high, due to its long service life, it has good cost-effectiveness in the long run and can reduce the maintenance and re-marking costs of road markings.

Environmental adaptability and maintainability

- It has good weather resistance and water resistance, can adapt to various harsh natural environments, maintain vividness for a long time, and is not easy to fade or be damaged due to natural aging, rain washing, and other factors.
- The later maintenance is relatively easy. If the marking lines need to be modified or removed, the paint can be softened by heating and then processed.



Manufacturing Line Traffic Road Marking Paint 25 Kg Road Sign Paint Coating Reflective Hot Melt Thermoplastic Marking Paint 4



                               Technical Specification

Density(g/cm3) 1.8-2.3
Softening point (℃) 90-125
Compressive Strength(MPa) ≥12
Glass bead content(%) 0-30%
Liquidity 35±10
Packing 25kg/bag
Color White/Yellow/Blue/Red/Green/Customized
Executive standard JT/T280-2004/AASHTO/BS3262/Customized
Appearance Powder
Construction temperature 180℃-220℃
Whiteness 70-85(Customized)
Inverse coefficient 50-550
Warranty 12 months
Storage Method Avoid light and moisture
Packing Size 45×70×5CM
