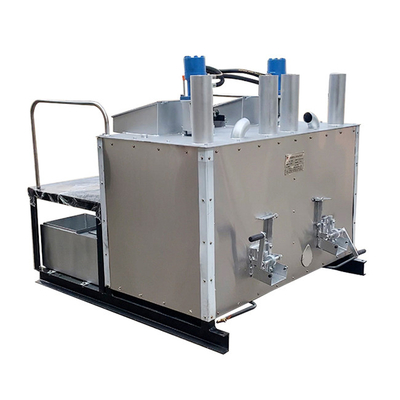

Energy Saving Hydraulic Double Cylinder Thermoplastic Paint Preheater with 15PS Diesel Engine Kneader

MOQ: 1 Set
Price: Pending
Standard Packaging: Packed by wooden box
Delivery Period: 5-8 working days
Payment Method: L/C,T/T
Supply Capacity: 5 set per day
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HUA QUN
Certification
ISO
Model Number
CK800/CK1000/CK1200
Net Weight:
700kg/1000kg/1200kg
Highlight:

Thermoplastic Paint Preheater

,

Thermoplastic Preheater

Product Description
Energy Saving Hydraulic Double Pre-Heater Thermoplastic Paint Preheater Kneader

Energy Saving Hydraulic Double Pre-Heater Thermoplastic Paint Preheater Kneader

CK800/CK1000/CK1200 pre-heater is one of the main equipment for thermoplastic marking construction. It is one kind of thermoplastic paint melting equipment with the advantages of high efficiency, quality melting materials, less fuel consumption, energy saving, easy operation and high safety.

Thermoplastic powder paint will be melted into liquid condition after being heated up to 180°C+, then it can be transferred to thermoplastic road marking machine for traffic line markings.

In the process of marking lines, the first step is to heat and stir the powdery paint in the preheater until it turns into liquid paint, then pour the paint into the marking machine for the marking operation. Since the melting level of the paint has a direct bearing on the quality of marking lines, the preheater plays an important role among the thermoplastic marking devices and is an essential part for melting paint.

Technical Parameters
Type CK700/CK800/CK1000/CK1200
Engine 15PS electric start evaporation water cooled diesel engine
Hydraulic System Integrated multiplex hydraulic control valve, forward and reverse stir CVT
Hydraulic Motor Type BM type
Hydraulic Tank Volume 40 litres
The Kettle 360x2kg/500x2kg/600x2kg, High carbon steel stainless steel cylinder the bottom of the pot, erect paddle mixer
Structure Multiple heat preservation: normal insulation material, composite insulation material, heat transfer oil
Heating System Multiple heating methods: normal LPG burner or LPG energy efficient burner
Safety Device Overload relief device specially designed, can prevent misoperation
Size CK700: 1750×1620×1190mm (Special low kettle for underground parking lot)
CK800: 1730×1620×1570mm
CK1000: 1750×1620×1700mm
CK1200: 1860×1820×1700mm
Net Weight 700kg/1000kg/1200kg
For More Details, Please Feel Free To Contact:
Linly Liao
WhatsApp/WeChat: +8615218861996
Energy Saving Hydraulic Double Cylinder Thermoplastic Paint Preheater with 15PS Diesel Engine Kneader 0 Energy Saving Hydraulic Double Cylinder Thermoplastic Paint Preheater with 15PS Diesel Engine Kneader 1 Energy Saving Hydraulic Double Cylinder Thermoplastic Paint Preheater with 15PS Diesel Engine Kneader 2 Energy Saving Hydraulic Double Cylinder Thermoplastic Paint Preheater with 15PS Diesel Engine Kneader 3
