Large Capacity Thermoplastic Kneader Hydraulic Preheater for Road Marking Materials

MOQ: 1 Set
Price: Pending
Standard Packaging: Packed by wooden box
Delivery Period: 5-8 working days
Payment Method: L/C,T/T
Supply Capacity: 5 set per day
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
HUA QUN
Certification
ISO
Model Number
HQTK
Name:
Thermoplastic Preheater
Total Weight Of Machine:
350-850kg
Hydraulic Tank Volume:
40 Litres
Application:
Road Marking
Outer Dimensions(L*W*H):
Depend On Model
Capacity Of Melting Coating:
300kg/500kg/800kg
Stirring Method:
Stirring Method
Place Of Origin:
Guangdong China
Product Description

Large Capacity Thermoplastic Kneader Hydraulic Preheater for Road Marking Materials


Hydraulic double-cylinder Pre-heater are one of the key machines for the construction of thermoplastic marking at present. With hydraulic drive as well as positive and reverse rotation controlled by multi-way reversing valve, the melting speed gets faster. It is mostly used in the construction of marking at the sites where fast melting is required such as freeway, State Highway, Provincial Highway etc.


No. Model HQ1 HQ2 HQ3
1 Outer dimensions 1620*1620*1400mm 1400*1400*1350mm 750mm*1700mm*1370mm
2 Empty weight 850kg 550kg 350kg
3 Thickness of boiler bottom 8mm 8mm 8mm
Diameter of boiler 700mm 550mm 600mm
Height of boiler 550mm 550mm 550mm
Capacity of paint 400kg*2 250kg*2 300kg/400kg
4 Agitator rotating speed 0-80r/min 0-80r/min 0-80r/min
5 Thickness of outer frame(stainless steel ) 2mm 2mm 2mm
6 Capacity of hydraulic oil tank 60L 60L 60L
7 Diesel engine power 12KW (16HP) 7 HP 7 HP
8 Engine start method Electrical(12V), Manual Electrical(12V), Manual Electrical(12V), Manual

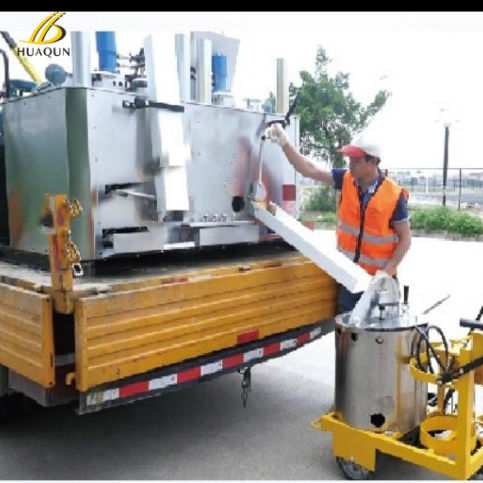

In the process of marking lines ,the first step is to heat and stir the powdery paint in the preheater until it turns into the liquid paint ,then pours the paint into the marking machine for the marking operation . Since the melting level of the paint has a direct bearing on the quality of marking lines ,the preheater plays an important role among the thermoplastic marking devices and is an essential part for melting paint .


Large Capacity Thermoplastic Kneader Hydraulic Preheater for Road Marking Materials 0

Large Capacity Thermoplastic Kneader Hydraulic Preheater for Road Marking Materials 1

Large Capacity Thermoplastic Kneader Hydraulic Preheater for Road Marking Materials 2

For More Details , Pls Feel Free To Contact :


Linly  Liao


Whatsapp/Wechat : +8615218861996
