Hydraulic Single/Double-cylinder Thermoplastic Kneader (Brief Intrudcution)

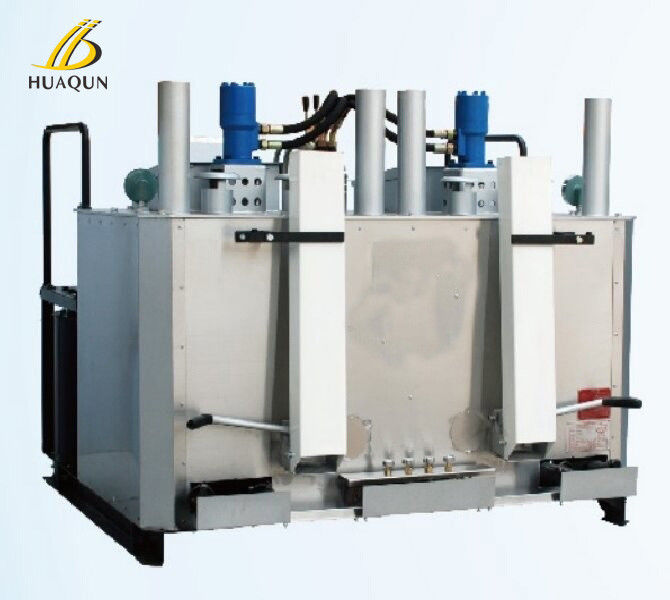

Double-cylinder Thermoplastic Kneader
Hydraulic Double-cylinder Thermoplastic Kneader is one of the key machines for the construction of thermoplastic marking at present. With hydraulic drive as well as positive and reverse rotation controlled by multi-way reversing valve, the melting speed gets faster. It is mostly used in the construction sites where fast melting is required, such as freeway, state highway, provincial highway, etc.
Nowadays, as the resource is getting in shortage, the cost of liquefied petroleum gas is increasing. So the efficiency of Thermoplastic Kneader is becoming more important.
Mixing uniformity and the melting speed of the coating material are directly related to the qulity and cost of road marking. how to complete the road marking construction in a shorter time?
Our Hydraulic thermoplastic kneader and mechanical thermoplastic kneader can hot melt thermoplastic material with higher speed, and mixing more evenly. Its efficiency is 30% higher than that of the similar products.
Hydraulic Single-cylinder Thermoplastic Kneader
They are suitable for the small line marking project, such as on parking lots, automotive trainer ground, house area, school, factory and warehouse. With the features of small size, light weight, easy to delivery, convenient to load and unload.
1.25 Meters Thermoplastic Kneader: Special Hydraulic Kneader for Underground Parking Lots
In the past, the thermoplastic kneader is placed outside the underground parking lots when working, only the small marking machine goes in. We also design kneaders are lowered 1000cm height to reach 1250mm height. Then the problem that the thermoplastic kneader can't go in the underground parking lots has been solved.
Technical Parameters
| Power | Diesel engine/ petroleum engine |
| Stirring speed | 0-80r/min |
| Stirring mode | Four helical blades can rotate leftwards and rightwards to move thermoplastic material up and down. |
| Heating temperature | 0-300℃ |
| Engine start method | Electrical (12V) or Manual |
| Fuel | LPG |
Parameters
| Model | Cylinder Quantity | Capacity of each cylinder | Outer dimensions | Weight |
| TW-YA | Double-cylinder | 250KG(9-11 bags of thermoplastic material) | 1300*1400*1350mm | 550kg |
| TW-YB | Double-cylinder | 300KG(11-13 bags of thermoplastic material) | 1520*1520*1370mm | 650kg |
| TW-YC | Double-cylinder | 400KG(15-17 bags of thermoplastic material) | 1620*1620*1370mm | 850kg |
| TW-YD | Double-cylinder | 500KG(19-21 bags of thermoplastic material) | 1620*1620*1600mm | 950kg |
| TW-YB1 | Single-cylinder | 300KG(11-13 bags of thermoplastic material) | 750*1700*1370mm | 450kg |
| TW-YC1 | Single-cylinder | 400KG(15-17 bags of thermoplastic material) | 850*1750*1370mm | 500kg |
| TW-YZ | Double-cylinder | According to customer’s requirement | ||
| TW-YZ1 | Single-cylinder | |||
Remark:
1. Practicality mode is covered by steel plate while standard mode is covered by stainless plate.
2. It can be customized according to clients’ requirements, such as kneader cylinder material (steel plate or stainless plate), outer dimensions, capacity of kneader cylinder, total height of thermoplastic kneader, diesel engine installation mode, etc.
|
|
