Product Details
Place of Origin: CHINA
Brand Name: HUA QUN
Certification: ISO
Model Number: HQTK
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Pending
Packaging Details: Packed by wooden box
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Supply Ability: 5 set per day
Name: |
Thermoplastic Preheater |
Total Weight Of Machine: |
350-850kg |
Hydraulic Tank Volume: |
40 Litres |
Application: |
Road Marking |
Outer Dimensions(L*W*H): |
Depend On Model |
Capacity Of Melting Coating: |
300kg/500kg/800kg |
Stirring Method: |
Stirring Method |
Place Of Origin: |
Guangdong China |
Name: |
Thermoplastic Preheater |
Total Weight Of Machine: |
350-850kg |
Hydraulic Tank Volume: |
40 Litres |
Application: |
Road Marking |
Outer Dimensions(L*W*H): |
Depend On Model |
Capacity Of Melting Coating: |
300kg/500kg/800kg |
Stirring Method: |
Stirring Method |
Place Of Origin: |
Guangdong China |

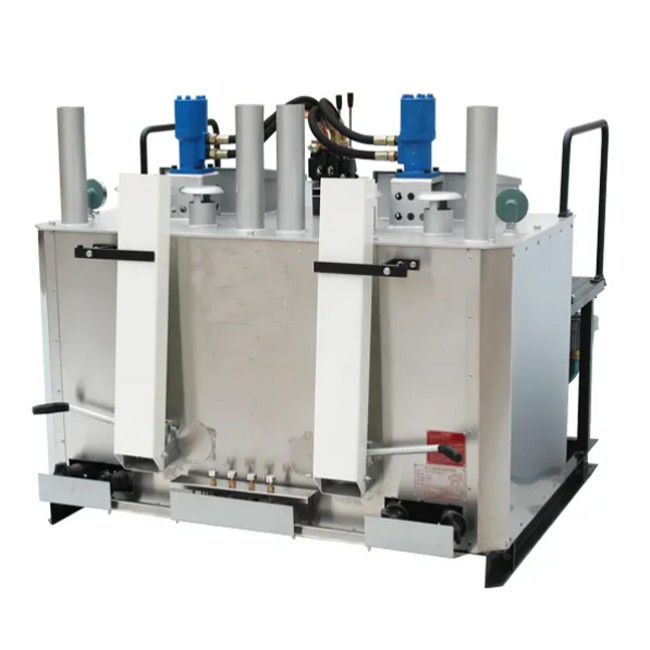

Large Capacity Thermoplastic Hydraulic Preheater Thermoplastic Kneader
Hydraulic double-cylinder Pre-heater are one of the key machines for the construction of thermoplastic marking at present. With hydraulic drive as well as positive and reverse rotation controlled by multi-way reversing valve, the melting speed gets faster. It is mostly used in the construction of marking at the sites where fast melting is required such as freeway, State Highway, Provincial Highway etc.
| No. | Model | HQ1 | HQ2 | HQ3 |
| 1 | Outer dimensions | 1620*1620*1400mm | 1400*1400*1350mm | 750mm*1700mm*1370mm |
| 2 | Empty weight | 850kg | 550kg | 350kg |
| 3 | Thickness of boiler bottom | 8mm | 8mm | 8mm |
| Diameter of boiler | 700mm | 550mm | 600mm | |
| Height of boiler | 550mm | 550mm | 550mm | |
| Capacity of paint | 400kg*2 | 250kg*2 | 300kg/400kg | |
| 4 | Agitator rotating speed | 0-80r/min | 0-80r/min | 0-80r/min |
| 5 | Thickness of outer frame(stainless steel ) | 2mm | 2mm | 2mm |
| 6 | Capacity of hydraulic oil tank | 60L | 60L | 60L |
| 7 | Diesel engine power | 12KW (16HP) | 7 HP | 7 HP |
| 8 | Engine start method | Electrical(12V), Manual | Electrical(12V), Manual | Electrical(12V), Manual |
In the process of marking lines ,the first step is to heat and stir the powdery paint in the preheater until it turns into the liquid paint ,then pours the paint into the marking machine for the marking operation . Since the melting level of the paint has a direct bearing on the quality of marking lines ,the preheater plays an important role among the thermoplastic marking devices and is an essential part for melting paint .
