Product Details
Place of Origin: China
Brand Name: HUA QUN
Certification: ISO 9001
Model Number: HQ-CK380
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: 1 unit/ Wooden box
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Features: |
Hand-Push |
Product Name: |
Thermoplastic Paint Marking Machine |
Glass Beads Capacity: |
10kgs |
Road Marking Paint Capacity: |
100kgs |
Weight: |
110 Kg |
Warranty: |
1 Year |
Mark Width: |
100-450mm ( Adjustable) |
Performance: |
Operate Easy |
Features: |
Hand-Push |
Product Name: |
Thermoplastic Paint Marking Machine |
Glass Beads Capacity: |
10kgs |
Road Marking Paint Capacity: |
100kgs |
Weight: |
110 Kg |
Warranty: |
1 Year |
Mark Width: |
100-450mm ( Adjustable) |
Performance: |
Operate Easy |

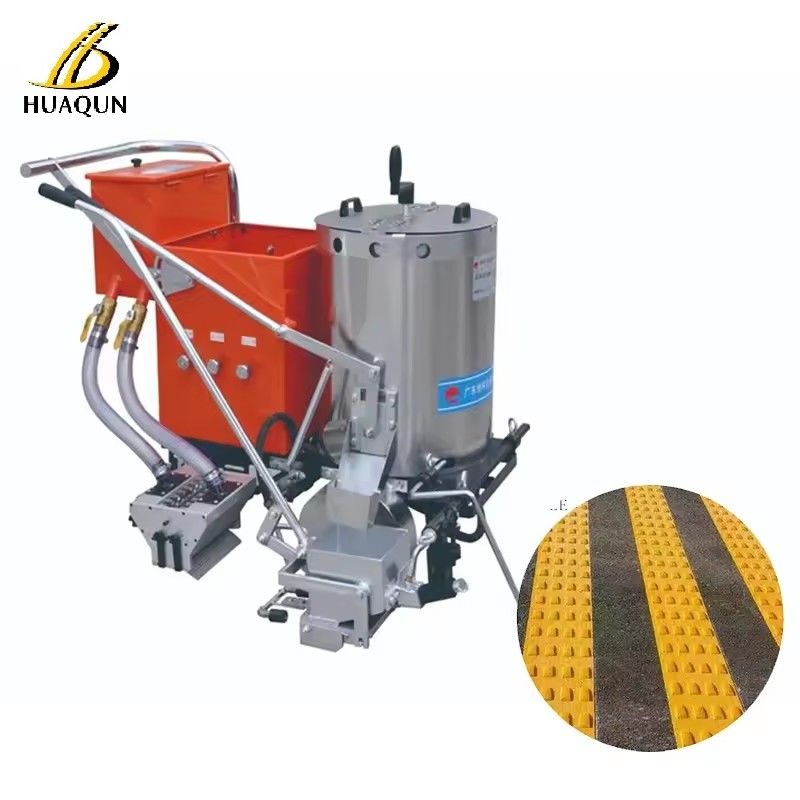

Hand Push Marking Machine for Road Marking with Adjustable Dispenser and Marking Equipment
Specification:
|
Paint barrels |
Double stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices |
|
Glass bead container |
10 kg/box |
|
Adjustable glass bead dispenser |
Glass bead dispenser for dispensing glass beads synchronously and quantitatively. It makes the dispensing synchronization with the marking line and ensure the quantity of the dispensing is controllable and adjustable. The dispense width of this dispenser is adjustable from 50mm to 200mm. |
|
Marking equipment |
150mm marking shoe(high-precision ultra-thin material manufacturing, scraper-type structure) |
|
Knife under frame the thickness of the scope marking |
Carbide, with eccentric sleeve device can adjust the 1-2.5mm |
|
Tire |
Alloy wheel, a special heat resistant rubber |
|
Rear wheel directional device |
Ensure the machine moving in straight line or tuning freely in curved road |
|
Heating method |
Liquefied petroleum gas |
|
Marking width |
100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 450mm |
|
Dimensions |
1250mm×900mm×950mm |
Product Description:
1. insulation barrel: double-layer stainless steel insulation heating barrel, double-layer stainless steel bottom, 100kg capacity, vertical manual mixing device, and removable barrel design.
2. glass bead storage tank: 10kg/ box
3. adjustable glass bead seeder: synchronous clutch seeder, with speed regulating and shifting device. Adjustable width 50-200mm
4. scoring bucket: it is made of high-precision ultra-thin material and has a scraper structure. It adopts a single scoring bucket handle. The knife is closed without material leakage. The marking edges are aligned, the head and tail are aligned, and the thickness is uniform.
5. floor cutter: hard alloy, with eccentric sleeve device, which can adjust the marking thickness range: 1-3mm.
6. rubber wheel: aluminum alloy wheel stock, special heat-resistant rubber, and the rear wheel is equipped with a positioner to ensure a straight line.
7. positioner: the rear tail wheel is equipped with a positioner to ensure that the vehicle body can walk in a straight line or turn freely
8. marking width: the standard configuration is 150mm, with different specifications such as 50/100/150/200/250/300/400/450mm. The marking bucket and glass bead spreader of different specifications can be replaced according to the engineering requirement
