Product Details
Place of Origin: China
Brand Name: HUA QUN
Certification: ISO 9001
Model Number: HQ-CK380S
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: 1 unit/ Wooden box
Delivery Time: 5 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Features: |
Hand Push |
Product Name: |
Road Line Marking Equipment |
Road Marking Paint Capacity: |
100kgs |
Warranty: |
12 Months |
Mark Width: |
100-450mm ( Adjustable) |
Dimension: |
1220x920x1100mm |
Type: |
Hot Melt |
Making Mode: |
Traffic Safety Paint |
Features: |
Hand Push |
Product Name: |
Road Line Marking Equipment |
Road Marking Paint Capacity: |
100kgs |
Warranty: |
12 Months |
Mark Width: |
100-450mm ( Adjustable) |
Dimension: |
1220x920x1100mm |
Type: |
Hot Melt |
Making Mode: |
Traffic Safety Paint |

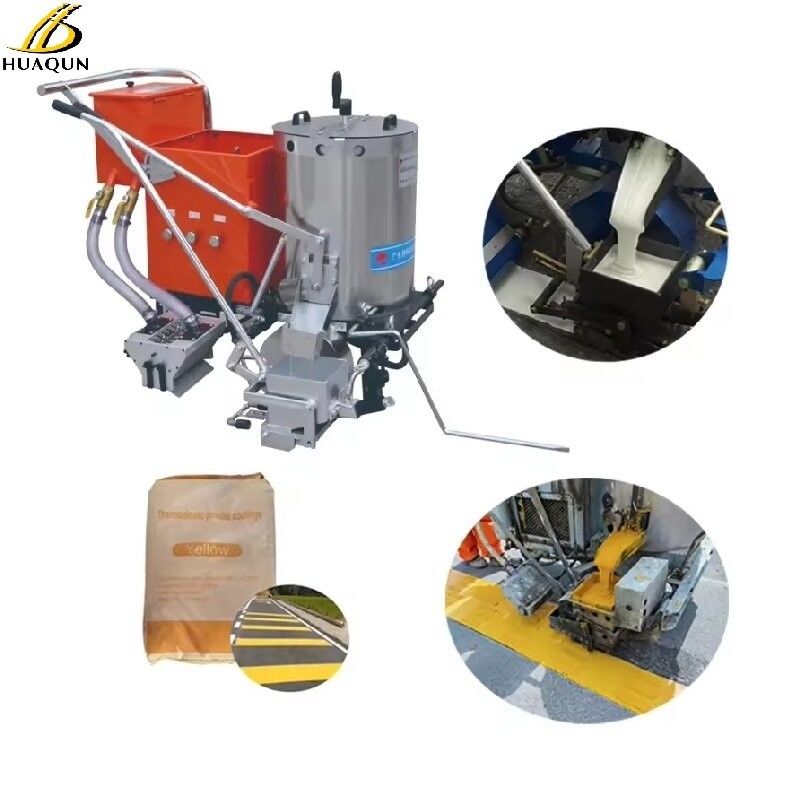

Low Investment and Easy Maintenance Thermoplastic Hand Push Marking Machine
Product Introduction:
This power-driven thermoplastic road marking machine is a kind of simply easy-used small size marking machine which is widely used in China and other developing countries or areas. Using spcial designed power system to reduce labor intensity. They have the advantage of low investment, light weight, easy loading, easy operation and maintenance, suitable for the marking work with thermoplastic paints in all kinds of roads, vehicle parks, schools, factories, etc.
Specification:
| Paint barrels | Double stainless steel insulate container, it plugged-in manually device which can be removed. Material container volume is 100kg |
| Glass bead container volume | 10 kg |
| Adjustable glass bead dispenser | Glass bead dispenser for dispensing glass beads synchronously and quantitatively. It makes the dispensing synchronization with the marking line and ensure the quantity of the dispensing is controllable and adjustable. The dispense width of this dispenser is adjustable from 50mm to 200mm. |
| Marking Mold | High precision ultra-thin material, unique design of screed box bottom ensures a good sealing and easy open & close |
| Tire | Alloy wheel, a special heat-resistant rubber. It also has rear wheel directional steering device to ensure the machine moving in straight line or turning freely. |
| Heating device | Using seamless steel material tube. It perfectly prevents air leak. |
| Marking shoe size | 50/100/150/200/250/350/400/450mm(optional) |
| Battery Capacity | 15 AH |
| Battery Voltage | 48V Lithium battery |
| Driver Speed | 1-8km/hour |
| Working Duration | Machine can mark road line 24 hours after charging battery 5 hours |
| Dimension | 1220x920x1100mm |
| Weight | 150kg |
| Brake | Using drum brake, you can adjust the brake tension |
Product Description:
1. Hand-push Thermoplasti road marking machine will be poured high-precision cast iron marking shoe to ensure that the marking came to uniform side and thickness, linear appearance
2. The glass beads spread complete with automatic speed control buffer devices.
3. The positioner upon back wheel make sure the machine go straight.
Feature:
This machine has the advantage of high-construction, fast, flexible operation, convenient maintenance and so on.
Application Area:
Highway, municipal roads, village or town road, guiding arrows words parking lines, factories etc.
