Product Details
Place of Origin: China
Brand Name: HUA QUN
Certification: ISO 9001
Model Number: TW-FJ
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: 1 unit/ Wooden box
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Features: |
Hand-Push |
Product Name: |
Traffic Line Painting Equipment |
Glass Beads Capacity: |
25kgs |
Paint Capacity: |
120kgs |
Weight Of Machine: |
220 Kg |
Dimension: |
1200x900x1100mm |
Performance: |
Operate Easy |
Marking Width: |
50-450mm |
Heating Temperature: |
0-300℃ |
LPG Tank Norm: |
15KG |
Features: |
Hand-Push |
Product Name: |
Traffic Line Painting Equipment |
Glass Beads Capacity: |
25kgs |
Paint Capacity: |
120kgs |
Weight Of Machine: |
220 Kg |
Dimension: |
1200x900x1100mm |
Performance: |
Operate Easy |
Marking Width: |
50-450mm |
Heating Temperature: |
0-300℃ |
LPG Tank Norm: |
15KG |

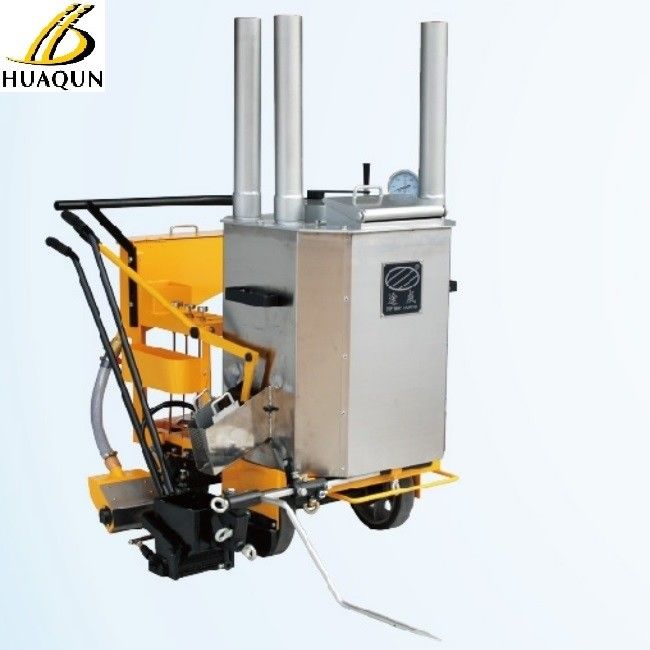

Hot-melting Kettle and Marking Machine Combined Thermoplastic Hand Push Marking Machine
Product Introduction
Model TW-FJ All-in-one Thermoplastic Kneader Marking Machine is a multifunctional hand-pushing machine integrated with hot-melting kettle and marking machine, is applicable to projects like parking lot, school, residential neighborhood and factory, which are small amount of work but scattered and fragmented. The machine is small in size, easy and convenient in operation with only two operators to handle it.
Special marking machine for underground parking lots.
The machine is especially applicable to the marking construction in enclosed environment like underground parking lots. Conventional thermoplastic kneader has to be carried by trucks for operation and cannot enter underground buildings due to floor height limit. This model is conveniently small and exquisite, can be used as special marking machine for underground parking lots.
Technical Parameter
| Product Name | Thermoplastic Kneader Marking Machine |
| Outer dimensions(L×W×H) | 1200×900×1100mm |
| Total weight of machine | 220kg |
| Capacity of glass beads case | 25kg |
| Capacity of stirring tank | 120kg |
| Coat thickness | 1.2-4mm |
| Bead dispensing method | Flexible Shaft Driven, Automatically Clutch |
| Heating temperature | 0--300℃ |
| LPG tank norm | 15KG |
| Marking width(mm) | 50-450mm |
Features
