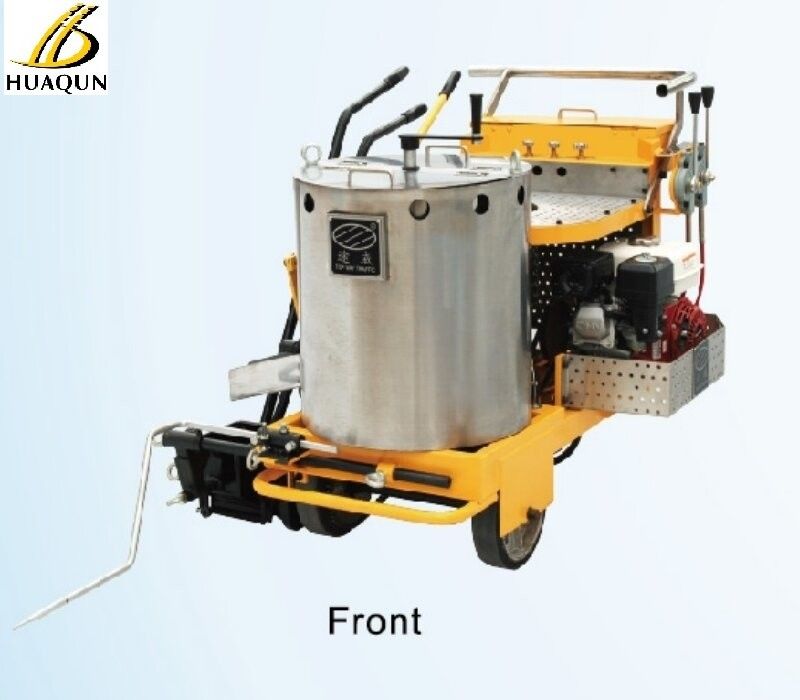

Lightweight Maneuverable Self Propelled Road Marking Machine Easy Operate

Lightweight Maneuverable Self Propelled Road Marking Machine Easy Operate

Brand Name:	HUA QUN
Model Number:	TW-A
MOQ:	1 unit
Price:	Pending
Delivery Time:	3 days
Payment Terms:	L/C, T/T, Western Union

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO 9001

Features:

Hand-Push

Product Name:

Self-propelled Road Marking Machine

Glass Beads Capacity:

25kgs

Paint Capacity:

120kgs

Weight Of Machine:

230 Kg

Dimension:

1400x1050x1050mm

Performance:

Operate Easy

Power Engine:

Honda 5.5 HP Gasoline Engine

Packaging Details:

1 unit/ Wooden box

Supply Ability:

60 sets per month

Highlight:

Lightweight Self Propelled Road Marking Machine

Maneuverable Self Propelled Road Marking Machine

Product Description

Thermoplastic Hand Push Marking Machine for Lightweight and Maneuverable Design

Product Introduction

Nowadays, as labor costs constantly increasing, the design ideas of "Save energy, Improve efficiency, Reduce labor intensity" runs through HUA QUN design solution. Our self-propelled road marking machine is as the upgrade product of hand push road marking machine.

For traditional self-propelled road marking machines, as LPG tank is too taller than operator that their sight is blocked. Our new model overcomes this disavantage by rearranging the hydraulic system and mechanical system, which makes the machine structure more reasonable and user-friendly.The most important point is that the toatal weight of the machine is 50kg lighter.

Technical Parameter

Product Name	Self-propelled road marking machine
Outer dimensions(L×W×H)	1400×1050×1050mm
Total weight of machine	230kg
Capacity of glass beads case	25kg
Capacity of stirring tank	120kg
Power engine	Honda 5.5 HP gasoline engine
Walking Drive	Hydraulic pressure
Walking speed	0-5km/h
Lineation speed	>800m/h(depending on paint condition and line thickness
Gradient	30%(about 16.5°)
Glass beads spreading method	Flexible Shaft Driven, Automatically Clutch
Heating method	Liquefied petroleum gas

Features

Convenient Speed Control System

This machine with hydraulic transmission, can walk forward and backward automatically, mark the line faster and more effective.
