| MOQ: | 1 set |
| Price: | Pending |
| Standard Packaging: | 1 unit/ Wooden box |
| Delivery Period: | 3-7days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 60 sets per month |

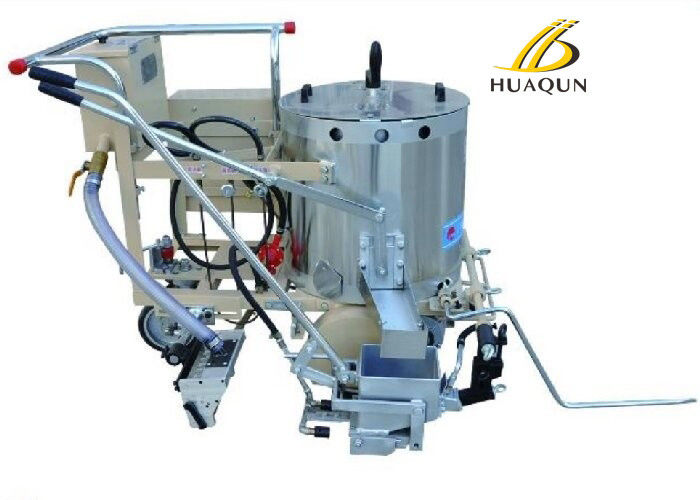

Thermoplastic Hand Push Road Marking Machine with Adjustable Glass Bead Dispenser
Description:
Hand-push thermoplastic road marking machine finishes the index lines with thermoplastic pre-heater, it's a important machine for index line marking. HQ-CK360 adopts specially-produced high presision cast iron marking shoe, as a way to make sure index line's even edge, head, thickness, and also pretty line style. Furthermore, other characteristics for instance the grounding knife can be used for the road surface of various conditions.
Specification:
|
Paint barrels |
Double-layer stainless steel heating insulation barrels, capacity 100 kg, plug-in manually mixer devices, removable devices |
|
Glass bead container |
10 kg/box |
|
Adjustable glass bead dispenser |
Glass bead dispenser for dispensing glass beads synchronously and quantitatively. It makes the dispensing synchronization with the marking line and ensure the quantity of the dispensing is controllable and adjustable. The dispense width of this dispenser is adjustable from 50mm to 200mm. |
|
Marking equipment |
150mm marking shoe(high-precision ultra-thin material manufacturing, scraper-type structure) |
|
Knife under frame the thickness of the scope marking |
Carbide, with eccentric sleeve device can adjust the 1-2.5mm |
|
Tire |
Alloy wheel, a special heat resistant rubber |
|
Rear wheel directional device |
Ensure the machine moving in straight line or tuning freely in curved road |
|
Heating method |
Liquefied petroleum gas |
|
Marking width |
100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 450mm |
|
Dimensions |
1250mm×900mm×950mm |
Product Description:
1. insulation barrel: double-layer stainless steel insulation heating barrel, double-layer stainless steel bottom, 100kg capacity, vertical manual mixing device, and removable barrel design.
2. glass bead storage tank: 10kg/ box
3. adjustable glass bead seeder: synchronous clutch seeder, with speed regulating and shifting device. Adjustable width 50-200mm
4. scoring bucket: it is made of high-precision ultra-thin material and has a scraper structure. It adopts a single scoring bucket handle. The knife is closed without material leakage. The marking edges are aligned, the head and tail are aligned, and the thickness is uniform.
5. floor cutter: hard alloy, with eccentric sleeve device, which can adjust the marking thickness range: 1-3mm.
6. rubber wheel: aluminum alloy wheel stock, special heat-resistant rubber, and the rear wheel is equipped with a positioner to ensure a straight line.
7. positioner: the rear tail wheel is equipped with a positioner to ensure that the vehicle body can walk in a straight line or turn freely
8. marking width: the standard configuration is 150mm, with different specifications such as 50/100/150/200/250/300/400/450mm. The marking bucket and glass bead spreader of different specifications can be replaced according to the engineering requirement
|
|
