Product Details
Place of Origin: CHINA
Brand Name: HUA QUN
Certification: ISO
Model Number: CK308S
Payment & Shipping Terms
Minimum Order Quantity: 1 Set
Price: Pending
Packaging Details: Packed by wooden box
Delivery Time: 5-8 working days
Supply Ability: 5 set per day
Type: |
CK308S |
Glass BeadsContainer Volume: |
10kg |
Weight: |
150kg |
Dimension: |
1220x920x1100mm |
Battery Capacity: |
15AH |
Battery Voltage: |
48V Lithium Battery |
Driver Speed: |
1- 8km/hour |
Warranty: |
1 Year |
Name: |
Hand Push Thermoplastic Road Marking Machine |
Type: |
CK308S |
Glass BeadsContainer Volume: |
10kg |
Weight: |
150kg |
Dimension: |
1220x920x1100mm |
Battery Capacity: |
15AH |
Battery Voltage: |
48V Lithium Battery |
Driver Speed: |
1- 8km/hour |
Warranty: |
1 Year |
Name: |
Hand Push Thermoplastic Road Marking Machine |

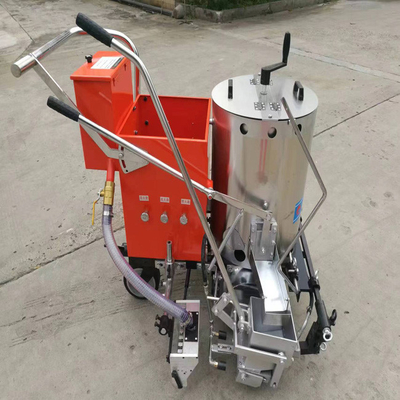

Double Stainless Steel CK308S Hand Push Thermoplastic Road Marking Machine For Road Marking
Hand Push Highway Line Thermoplastic Road Marking Machine Easy Operation
CK380SPower-driven thermoplastic road marking machine is akind of simply easy-used small size marking machine which iswidely used in China and other developing countries or areas.Using special designed power system to reduce laborintensity.They have the advantages of low investment, lightweight,Easy loading, easy operation and maintenance, suitable forthe marking work with thermoplastic paints in all kinds of roadsvehicle parks, schools, factories, etc.
1. The marking hopper of this machine is made of high-precision cast iron, which can make the marking line orderliness, uniform thickness and more beautiful.
2. Glass beads automatic spreader equipped with buffer device of speed regulation which has advantage of high efficiency, high quality, easy to operate and convenient for maintenance.
3. Wear-resistant, heat-resistant, non-sticky, anti-deformation, easy to adjust. The toothed-type closing structure is tightly closed without leakage. Line thickness is uniform, edge and head are straight and neat.
4. Equipped with a hydraulic transmission and infinitely variable speed system, it can control running speed and make it run at a constant speed.
5. High-temperature resistance, anti-wear, no deformation, no degumming, long service life, and light walking.
6. The surface of the whole machine adopts a high level of electrophoresis coating or composite electroplating treatment and has very excellent performance of anti-corrosion and anti-rust.
| Technical Parameters | |
| Type | CK308 |
| Engine | Double stainless steel insulate container,it plugged-in manually devicewhich can be removed.Material container volume is 100kg |
| Glass BeadsContainer Volume | 10kg |
| Adjustable GlassBeads Dispenser | Glass beads dispenser fordispensing glass beads synchronously and quantitatively.It makes the dispensing synchronization with the marking line and ensures thequantity of the dispensing is controllable and adjustable .The dispense width of thisdispenser is adjustable: from 50mm to 200mm. |
| Marking Mold | High precision ultra-thin material,unique design of screed box bottomensures a good sealing and easy open 8 close |
| Tire | Alloy Wheel,a special heat-resistant rubberIt also has rear wheeldirectional steering device to ensure the machine moving in straight lineor turning freely. |
| Heating device | Using seamless steel material tube,It perfectly prevents air leak |
| Marking shoe sizes | 50/100/150/200/250/350/400/450 mm (optional) |
| Battery Capacity | 15AH |
| Battery Voltage | 48V Lithium battery |
| Driver Speed | 1- 8km/hour |
| Working Duration | Machine can mark road lines24 hours after charging battery 5 hours |
| Dimension | 1220x920x1100mm |
| Weight | 150kg |
| Brake | Using drum brake, you can adjust the brake tension |
