Product Details
Place of Origin: China
Brand Name: HUA QUN
Certification: ISO 9001
Model Number: HQ-CKDX2000
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: 1 unit/ Wooden box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Product Name: |
Thermoplastic Line Marking Machine |
Paint Tank Capacity: |
300 Kg |
Control System: |
Computer Automatic Control |
Type: |
Road Lining Machines |
Mark Width: |
100-400mm ( Adjustable) |
Dimension: |
2000x1400x1750mm |
Weight: |
720 Kg |
Engine: |
Gasoline Engine 13-18P |
Product Name: |
Thermoplastic Line Marking Machine |
Paint Tank Capacity: |
300 Kg |
Control System: |
Computer Automatic Control |
Type: |
Road Lining Machines |
Mark Width: |
100-400mm ( Adjustable) |
Dimension: |
2000x1400x1750mm |
Weight: |
720 Kg |
Engine: |
Gasoline Engine 13-18P |

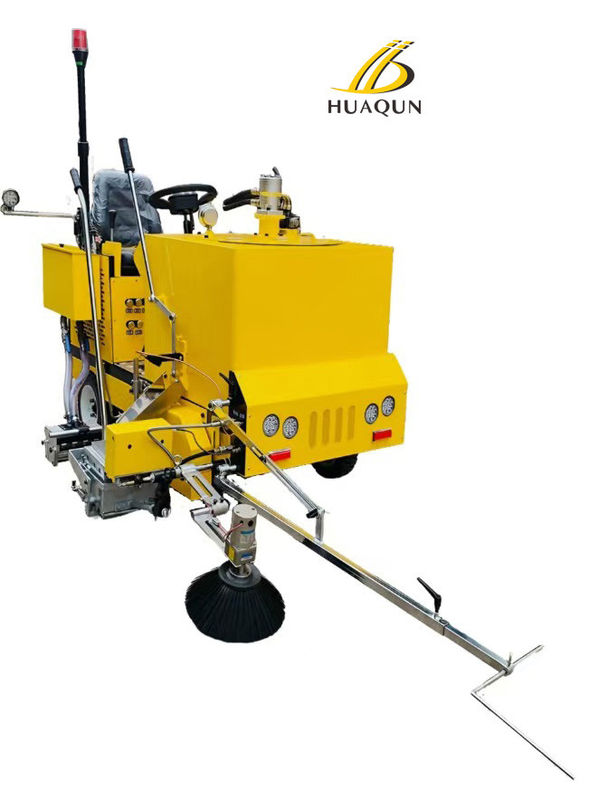

Multifunctional Marking Machine with Hydraulic Drive for Smooth and Consistent Mixing
Technical Parameters:
(1) Engine: Gasoline engine 13-18P
(2) Driving System: Imported hydraulic variable-speed system
(3) Air compressor: 0.036m3/min
(4) Paint bucket capacity: 300kg
(5) Glass bead box capacity: 25L
(6) Heating fuel: liquefied petroleum gas
(7) Marking device: pneumatic screed marking head, standard 150mm
(8) Control system: computer automatic control
(9) Walking speed: 0-20km/h
(10) Maximum climbing angle: <20°
(11) Marking speed: 1000m/h
(12) Marking width: 150mm, 200mm, 300mm, 400mm (configured according to customer needs)
(13) Equipment dimensions (length x width x height): 2000mm x 1400mm x 1750mm
(14) Equipment weight: 720kg
(15) Brake system: drum brake, adjustable brake tension
(16) Mixing method: hydraulic drive, variable speed without limits
| Type | Multifunction Hot Melt Marking Machine |
|
Dimension |
2000x1400x1750mm |
| Weight | 720kg |
| Capacity of container | 300kg |
| Glass beads container volume | 25L |
| Engine | Gasoline engine 13-18P |
| Fuel | LPG gas |
| Driving system | Imported hydraulic variable-speed system |
| Walkingspeed | 0-20km/h |
| Marking Speed | 1000m/hour |
| Maximum climbing capacity | <20º |
| Brake system | drum brake, adjustable brake tension |
| Marking width |
Change different specifications of shoe( 150, 200, 300, 400mm) according to the need of the project |
Feature:
(1) The perfect equipment for medium or large road marking projects;
(2) This equipment is driven by a rider, reducing the labor intensity of manual operation and improving construction efficiency.
(3) The advanced hydraulic drive variable-speed system can precisely control speed and adjust;
(4) This equipment can perform normal thermoplastic road marking and raised oscillating road marking, achieving one machine for multiple uses;
(5) The microcomputer automatic control uses the latest intelligent program controller and humanized control panel;
(6) The road marking and raised dimensions can be set arbitrarily;
(7) The glass bead scatterer synchronized with the paint application system ensures that the glass beads are spread more evenly and more economically;
(8) The paint application hopper made of special materials is resistant to high temperatures, corrosion, and deformation;
(9) It can accurately shape, heighten, and space out the raised road markings, meeting the requirements of various road conditions and achieving the stipulations of international standards;
(10) The double-layer insulated material hopper has a longer melting material insulation time, less fuel consumption, and higher melting material efficiency;
(11) The warning light and lighting system make nighttime construction safer and more convenient;
