Product Details
Place of Origin: China
Brand Name: HUA QUN
Certification: ISO 9001
Model Number: HQ-TW-H
Payment & Shipping Terms
Minimum Order Quantity: 1 unit
Price: Pending
Packaging Details: 1 unit/ Wooden box
Delivery Time: 3 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 sets per month
Features: |
Hand-Push |
Product Name: |
Thermoplastic Road Marking Paint Machine |
Glass Beads Capacity: |
25kgs |
Paint Capacity: |
105kgs |
Weight Of Machine: |
125 Kg |
Mark Width: |
50/80/100/120/150/200/230/250/300/400/450/500mm ( Adjustable) |
Performance: |
Easy Operate |
Outer Dimensions: |
1200*900*900mm |
Features: |
Hand-Push |
Product Name: |
Thermoplastic Road Marking Paint Machine |
Glass Beads Capacity: |
25kgs |
Paint Capacity: |
105kgs |
Weight Of Machine: |
125 Kg |
Mark Width: |
50/80/100/120/150/200/230/250/300/400/450/500mm ( Adjustable) |
Performance: |
Easy Operate |
Outer Dimensions: |
1200*900*900mm |

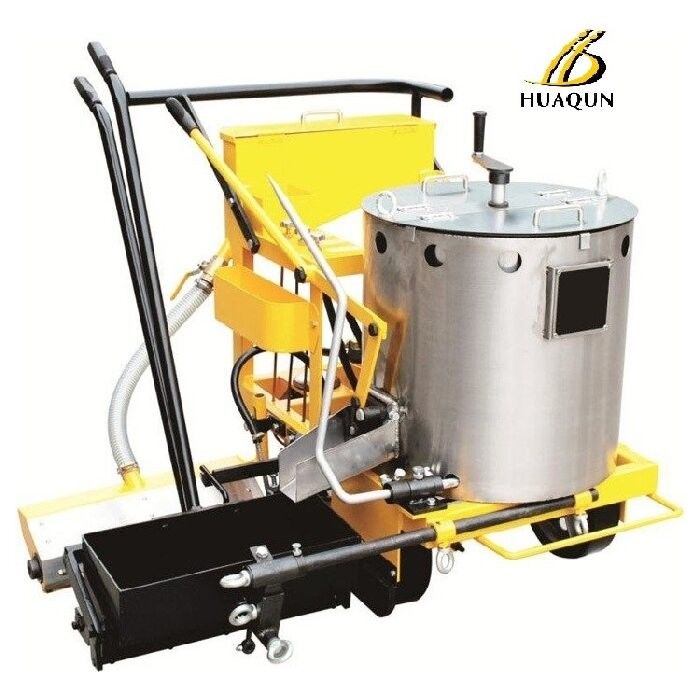

Thermoplastic Hand Push Marking Machine with Compact Structure and Material Leakage Prevention
Product Introduction
Hand Push Marking Machine is one of the key machines for thermoplastic coating marking. The marking quality depends on the stability of machine frame and the operating range of marking hopper, which reflect the difference in performance of different marking machine. This hand push machine in its new design, its wheel space wider, center of gravity change, shaft form renewed, so the machine body is lighter and more flexible, reduce labor intensity, such problems as uneven finishing mark edge and over operation are solved, and reduce unstableness when marking zebra crossing.
Double-handle Marking Hopper
Easy to operate marking hopper’s operating range minimized from 300mm to 200mm, more accurate and easier to control, therefore such problems as slow hopper withdrawal and uneven finishingmark edge are solved. A multi-point slider compact structure is used to avoid material leakage which often occurs to similar products due to the two tightly pressed sides and large deformation in the middle part.
Technical Parameter
| Product Name | Hand push road marking machine |
| Outer dimensions(L×W×H) | 1200×900×900mm |
| Total weight of machine | 125kg |
| Capacity of glass beads case | 25kg |
| Capacity of stirring tank | 105kg |
| Coat thickness | 1.2-4.0mm |
| Glass beads spreading method | Flexible shaft driven, automatically clutch |
| Temperature maintenance of coating material | 170-250℃ |
| LPG tank norm | 15kg |
| Marking width | 50-500mm |
