| MOQ: | 1 unit |
| Price: | Negotiable |
| Standard Packaging: | 1 unit/ Wooden box |
| Delivery Period: | 3 days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 3000 units per month |
ISO Factory Hand Push Road Marking Machine Good Price Light Weight Thermoplastic Road Machine
Product Introduction
A thermoplastic road marking machine is a device used to apply thermoplastic markings on roads.
Thermoplastic material is a kind of plastic that becomes soft and fluid when heated and solidifies when cooled. The machine heats the thermoplastic material to a molten state and then applies it through a nozzle or other applicator onto the road surface in the desired pattern, such as lane lines, crosswalks, arrows, etc.
These machines usually have a heating system to keep the thermoplastic at the proper temperature for application. They also have a mechanism for controlling the flow rate and spray pattern to ensure accurate and consistent markings. They play a crucial role in road construction and maintenance to enhance traffic safety and guidance.

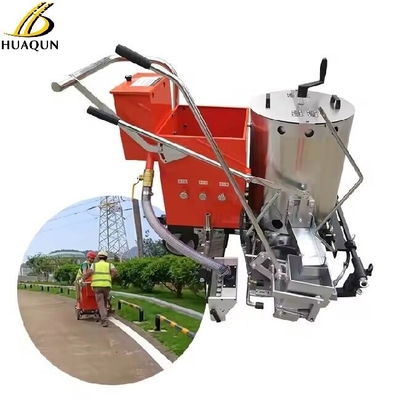

Road Marking Machine
1. Torches
2. Trunk
3. Stirring Shaft
4. Paint Input Door
5. Stainless Steel Heat Perservation Kettle
6. Paint Outdput Door
7. Pointing Needle
8. Hanger & Front Burner
9. Landing Knife
10. Rear Burner
11. Marking Mold
12. Glass Beads Spreader
13. Glass Beads Box
14. Marking Mould Handle
15. Paint Output Handle
Specification:
| Type | HQ-CK380 |
| Thermoplastic Tank | Double stainless steel heating insulation barrels , capacity 100kg, plug-in manually mixer devices , removable devices |
| Glass Bead Container | 10 KG /Box |
|
Adjustable Glass Beads Dispenser |
Glass Beads Dispenser for dispensing glass beads synchronously and quantitatively . makes the dispensing synchronization with the marking line and ensures the quantity of the dispensing is controllable and adjustable , the dispense width of this dispenser is adjustable 50mm to 200mm |
| Marking Requirement | 150mm marking shoe (High-precision ultra-thin material manufacturing, scraper- type structure) |
| Knife Underframe The Thickness of the scope marking | Carbide ,with eccentric sleeve device can adjustable the 1-2.5 mm |
| Tire | Alloy Wheel, a special heat-resistant rubber |
| Rear Wheel Directional Device | Ensure the machine moving in straight line or turning freely in curved road |
| Heating Method | Liquefied Petroleum Gas |
| Hopper Marking width | 100mm, 150mm , 200mm, 250mm, 300mm, 400mm, 450mm |
| Dimensions | 1200mm*900mm*950mm |
| Weight | 100KG |
Feature:
This machine has the advantage of high-construction, fast, flexible operation, convenient maintenance and so on.
Application Area:
Highway, municipal roads, village or town road, guiding arrows words parking lines, factories etc.
|
|
