| MOQ: | 1 unit |
| Price: | Negotiable |
| Standard Packaging: | 1 unit/ Wooden box |
| Delivery Period: | 3 days |
| Payment Method: | L/C, T/T, Western Union |
| Supply Capacity: | 3000 units per month |

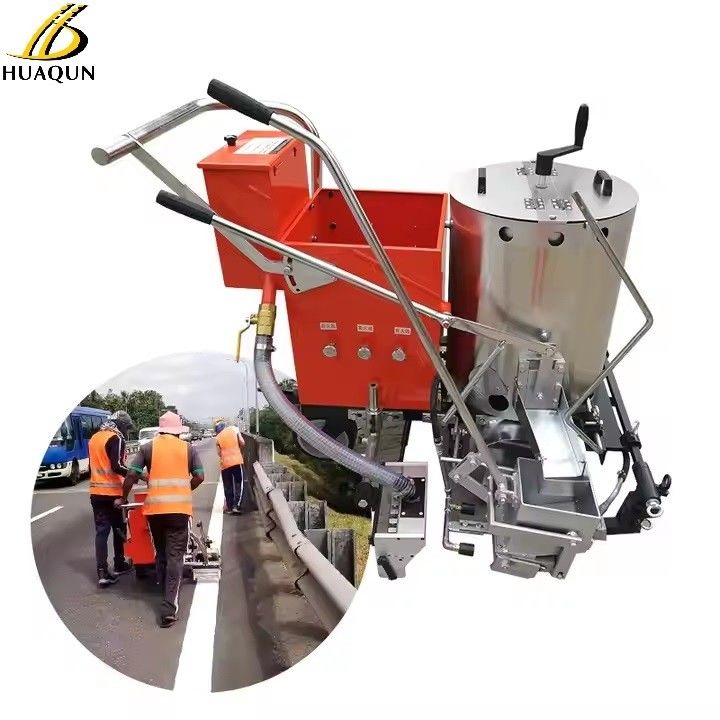

Road Marking Machine
1. Torches
2. Trunk
3. Stirring Shaft
4. Paint Input Door
5. Stainless Steel Heat Perservation Kettle
6. Paint Outdput Door
7. Pointing Needle
8. Hanger & Front Burner
9. Landing Knife
10. Rear Burner
11. Marking Mold
12. Glass Beads Spreader
13. Glass Beads Box
14. Marking Mould Handle
15. Paint Output Handle
Specification:
| Type | HQ-CK380 |
| Thermoplastic Tank | Double stainless steel heating insulation barrels , capacity 100kg, plug-in manually mixer devices , removable devices |
| Glass Bead Container | 10 KG /Box |
|
Adjustable Glass Beads Dispenser |
Glass Beads Dispenser for dispensing glass beads synchronously and quantitatively . makes the dispensing synchronization with the marking line and ensures the quantity of the dispensing is controllable and adjustable , the dispense width of this dispenser is adjustable 50mm to 200mm |
| Marking Requirement | 150mm marking shoe (High-precision ultra-thin material manufacturing, scraper- type structure) |
| Knife Underframe The Thickness of the scope marking | Carbide ,with eccentric sleeve device can adjustable the 1-2.5 mm |
| Tire | Alloy Wheel, a special heat-resistant rubber |
| Rear Wheel Directional Device | Ensure the machine moving in straight line or turning freely in curved road |
| Heating Method | Liquefied Petroleum Gas |
| Hopper Marking width | 100mm, 150mm , 200mm, 250mm, 300mm, 400mm, 450mm |
| Dimensions | 1200mm*900mm*950mm |
| Weight | 100KG |
●Insulation barrel: double-layer stainless steel insulation heating barrel, double-layer stainless steel bottom, 100 kg capacity,vertical manual mixing device, and removable barrel design.
●Glass bead storage tank: 10 kg/ box
●Adjustable glass bead seeder:synchronous clutch seeder, with speed regulating and shifting device. Adjustable width 50-200 mm
●Scoring bucket: it is made of high-precision ultra-thin material and has a scraper structure. It adopts a single scoring bucket handle. The knife is closed without material leakage. The marking edges are aligned, the head and tail are aligned, and the thickness is uniform.
●Floor cutter: hard alloy, with eccentric sleeve device, which can adjust the marking thickness range: 1-2.5 mm.
●Rubber wheel: aluminum
alloy wheel stock, special heat-resistant rubber, and the rear wheel is equipped with a positioner to ensure a straight line.
●Positioner: the rear tail wheel is equipped with a positioner to ensure that the vehicle body can walk in a straight line or turn freely
●Marking width: the standard configuration is 150mm, with different specifications such as
50/100/150/200/250/300/400/450mm. The marking bucket and glass bead spreader of different specifications can be replaced according to the engineering requirements
Feature:
This machine has the advantage of high-construction, fast, flexible operation, convenient maintenance and so on.
Application Area:
Highway, municipal roads, village or town road, guiding arrows words parking lines, factories etc.
Application:
Here are the general steps to operate a thermoplastic road - marking machine:
|
|
